If you are working with Microsoft dynamics 365 commerce you first have to initialize commerce scale unit. You can perform this initialization only in tier 2 environments and with either the Project Owner or Environment manager role.

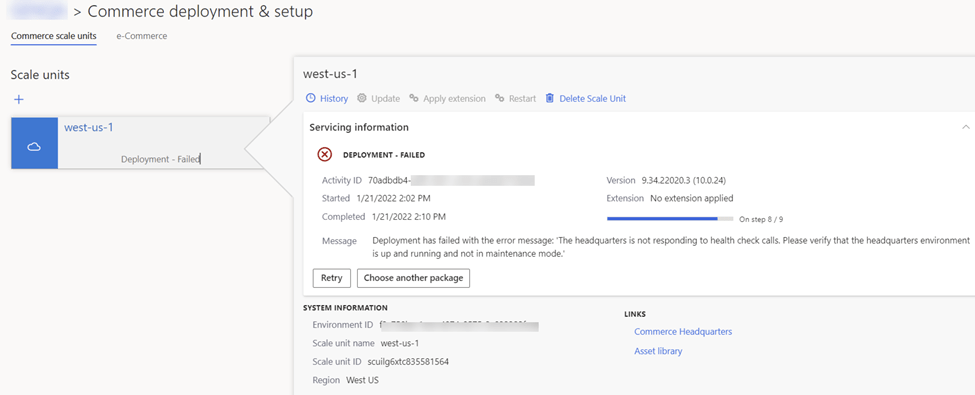

While initializing retail commerce scale unit (RCSU) you might face below issue on LCS where the error says
“Headquarters is not responding to health check calls. Please verify that the headquarters environment is up and running and not in maintenance mode”
Troubleshooting:
In deployment logs we found the exact error as below
Real-time Service client library call failed. CorrelationId: ‘7cd03fdc-3424-4da8-9cd5-75ce9c61fd63’. ApiName: ‘IsAlive’. MethodName: ‘IsAlive’. Language: ‘(null)’. Company: ”. ParameterCount: ‘0’. Ex: ‘Microsoft.Dynamics.Retail.Cdx.RealtimeServiceClientLibrary.Exceptions.RtsCommunicationException: Real-time Service call for method ‘IsAlive’ successfully authenticated with AAD (Azure Active Directory), but was blocked by Operations. This can happen when the AAD client ID (set in CommerceRuntime.config) being used isn’t mapped to a user in Operations, that mapped user has insufficient permissions in Operations to perform Real-time service operations, or the configured AOS URL is incorrect (set via serviceHostUrl in CommerceRuntime.config). —> System.ServiceModel.FaultException: Forbidden
What this error suggests that RTS (Real time service) is trying to connect to HQ (F&O) through azure active directory app configured using RetailServiceAccount user present in F&O.
Since RetailServiceAccount was not present RTS was failing.
You can check RTS status by pinging this URL
https:// <scale unit id from lcs>-rs-staging.azurewebsites.net/healthcheck?testname=ping
If the status is red for retail service, you can check if User and App is configured in F&O.
So , the cause of this issue is missing RetailServiceAccount from userinfo table and cause for that can anything listed below
- Maintenance mode for your environment is enabled.
- DB movement between environments.
- Sometimes while deploying environments, it fails multiple times and then deploys successfully.
You can check if RetailServiceAccount removed from userInfo table by running following query
select ID, NAME, ENABLE, NETWORKALIAS, NETWORKDOMAIN, ACCOUNTTYPE, COMPANY, DEFAULTPARTITION, LANGUAGE, HELPLANGUAGE, SID, OBJECTID, PREFERREDTIMEZONE from userinfo where ID = ‘RetailServiceAccount’
If query returns no result, then you can execute the following query in the AXDB to restore the RetailSystemAccount and mark it as system account.
SET NOCOUNT ON
— CREATE A TEMPORARY STORED PROCEDURE TO CREATE ROLES.
IF OBJECT_ID ( ‘TEMPDB..#RETAILDRIASSIGNROLE’, ‘P’ ) IS NOT NULL
DROP PROCEDURE #RETAILDRIASSIGNROLE;
GO
CREATE PROC #RETAILDRIASSIGNROLE @USERID VARCHAR(100), @ROLENAME VARCHAR(100)
AS
DECLARE @SECURITYROLERECID BIGINT;
SET @SECURITYROLERECID = (SELECT TOP 1 RECID
FROM SECURITYROLE
WHERE SECURITYROLE.AOTNAME = @ROLENAME)
IF @SECURITYROLERECID IS NULL
BEGIN
PRINT ‘ROLE ‘ + @ROLENAME + ‘ DOES NOT EXIST IN THE ENVIRONMENT. ROLE WILL BE SKIPPED.’
END
ELSE
BEGIN
IF EXISTS(SELECT * FROM SECURITYUSERROLE WHERE SECURITYROLE = @SECURITYROLERECID AND [USER_] = @USERID) OR (@SECURITYROLERECID IS NULL)
BEGIN
PRINT ‘ROLE ‘ + @ROLENAME + ‘ WITH RECID: ‘ + CAST(@SECURITYROLERECID AS VARCHAR) + ‘ ALREADY EXISTS FOR THE USER. ROLE WAS NOT ASSIGNED TO USER.’
END
ELSE
BEGIN
PRINT ‘ADDING ROLE ‘ + @ROLENAME + ‘ WITH RECID: ‘ + CAST(@SECURITYROLERECID AS VARCHAR) + ‘ TO USER ‘ + @USERID
INSERT INTO SECURITYUSERROLE(SECURITYROLE, [USER_], ASSIGNMENTMODE, ASSIGNMENTSTATUS) VALUES(@SECURITYROLERECID, @USERID, 1, 1)
END
END
GO
DECLARE @RETAILSERVICEACCOUNT VARCHAR(100);
SET @RETAILSERVICEACCOUNT = ‘RetailServiceAccount’;
BEGIN TRAN
–CHECK IF THE USER REORD ALREADY EXISTS.
IF NOT EXISTS( SELECT * FROM USERINFO WHERE ID = @RETAILSERVICEACCOUNT)
BEGIN
PRINT ‘CREATING SYSTEM ACCOUNT: ‘ + @RETAILSERVICEACCOUNT
— LCS PROD
INSERT INTO USERINFO (ID, NAME, NETWORKALIAS, NETWORKDOMAIN, ACCOUNTTYPE, COMPANY, DEFAULTPARTITION , ENABLE, LANGUAGE, HELPLANGUAGE, SID, OBJECTID, PREFERREDTIMEZONE)
VALUES (@RETAILSERVICEACCOUNT, @RETAILSERVICEACCOUNT, ‘RetailServerSystemAccount@dynamics.com’, ‘https://sts.windows.net/’, 2, ‘dat’, 1, 1, ‘EN-US’, ‘EN-US’, ‘S-1-19-2668615710-2480941646-1684813103-2026890972-2302207704-2864208061-3273002221-3047239075-1510753007-4079435192’, ‘FA6B0156-76D9-4BC2-B618-68CB7A3BF599’, 58)
IF EXISTS(SELECT 1 FROM SYS.COLUMNS WHERE NAME = N’ISMICROSOFTACCOUNT’ AND OBJECT_ID = OBJECT_ID(N’DBO.USERINFO’))
BEGIN
PRINT ‘SETTING ISMICROSOFTACCOUNT TO 1 FOR ‘ + @RETAILSERVICEACCOUNT
EXEC(‘UPDATE USERINFO SET ISMICROSOFTACCOUNT = 1 WHERE ID = ”’ + @RETAILSERVICEACCOUNT + ””)
PRINT @RETAILSERVICEACCOUNT + ‘ IS NOW A SYSTEM ACCOUNT’
END
ELSE
BEGIN
PRINT ‘ISMICROSOFTACCOUNT IS NOT AVAILABLE IN THIS ENVIRONMENT. PLEASE HAVE THE CUSTOMER UPDATE TO THE LASTEST PLATFORM VERSION AVAILABLE.’
END
PRINT ‘USER CREATED’
END
ELSE
BEGIN
PRINT ‘AN RECORD ALREADY EXISTS IN TABLE USERINFO WITH ID: ‘+ @RETAILSERVICEACCOUNT
PRINT ‘NO USER HAS BEEN CREATED.’
END
— CREATE ROLES.
PRINT ‘ASSIGNING ROLES TO ‘ + @RETAILSERVICEACCOUNT
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘RETAILSERVICE’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘LEDGERACCOUNTANT’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘CUSTINVOICEACCOUNTSRECEIVABLECLERK’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘CUSTINVOICEACCOUNTSRECEIVABLEMANAGER’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘BATCHJOBMANAGER’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘COLLECTIONLETTERCOLLECTIONSMANAGER’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘INVENTCOSTACCOUNTANT’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘INVENTCOSTCOSTCLERK’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘INVENTMATERIALSMANAGER’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘INVENTQUALITYCONTROLMANAGER’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘INVENTRECEIVINGCLERK’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘INVENTSHIPPINGCLERK’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘JMGADVTIMEWORKER’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘TRADEPURCHASINGMANAGER’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘RETAILCATALOGMANAGER’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘RETAILMERCHANDISINGMANAGER’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘RETAILOPERATIONSMANAGER’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘RETAILWAREHOUSEMANAGER’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘RETAILWAREHOUSECLERK’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘TRADESALESCLERK’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘TRADESALESMANAGER’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘TRADESALESREPRESENTATIVE’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘SMASERVICEDELIVERYMANAGER’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘SUBLEDGERJOURNALTRANSFERMAINTAINROLE’ — THIS ROLE IS NOT AVAILABLE IN OLDER ENVIRONMENTS.
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘FBTAXACCOUNTANT_BR’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘VENDVENDORACCOUNTMANAGER’
EXEC #RETAILDRIASSIGNROLE @RETAILSERVICEACCOUNT, ‘VENDPURCHASINGAGENT’
PRINT ‘ROLES CREATED’
COMMIT TRAN
GO
IF OBJECT_ID ( ‘TEMPDB..#RETAILDRIASSIGNROLE’, ‘P’ ) IS NOT NULL
BEGIN
DROP PROCEDURE #RETAILDRIASSIGNROLE;
END
GO
